Reverse Dutch Weave Belts

Reverse Dutch Weave Belts is a very strong woven product in which the larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain dutch weave, twilled dutch weaves and sometimes referred to as PZ and KPZ Mesh.

Material: stainless steel wire 302, 304, 316 or 316L.

Width of roll: 67mm, 95mm, 97mm, 127mm, 133mm, 150mm, 157mm,300mm, 400mm, etc.

Length of roll: 10m, 20m, 30m,etc.

Popular Weaving Types for Wire Mesh: reverse plain dutch Weave wire cloth, reverse twill dutch weave wire cloth.

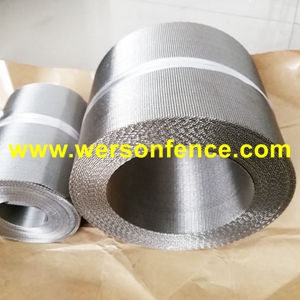

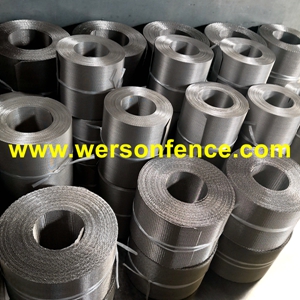

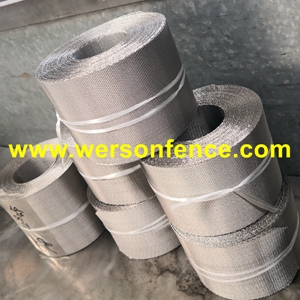

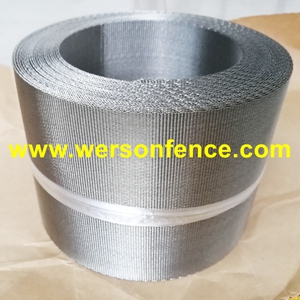

Reverse Dutch Weave BeltsReverse Dutch Weave Filter Belts

Reverse Dutch Weave Belts
Weave of Type Mesh/Inch Wire Diameter
mm
Nominal
μm
TRD 48 x 10 0.50 X 0.50 400
TRD 72 x 15 0.50 x 0.50 300
TRD 132 x 14 0.35 x 0.45 200
TRD 132 x 18 0.35 x 0.44 180
TRD 152 x 24 0.27 x 0.40 160
TRD 152 x 30 0.27 x 0.30 130
RPD 250 x 40 0.15 x 0.25 90
RPD 260 x 40 0.15 x 0.27 125
RPD 280 x 70 0.089 x 0.21 45
RPD 325 x 39 0.13 x 0.24 55
RPD 600 x 125 0.043 x 0.12 20
RPD 720 x 150 0.035 x 0.107 15

If you need to consult the price, please contact the business department by e-mail:

info@wersonfence.com

When you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
